ASTM B148 NPT Thread Ball Valve Nickel Aluminum Bronze C95800 DN25 800LB Locking device
- Model Number:
- CX-FBV-002
- Minimum Order Quantity:
- 1Set
- Prices:
- Negotiable
- Packaging Details:
- Plywood Case
- Delivery Time:
- depends on the qty of order
- Payment Terms:
- L/C, D/A, D/P, T/T, Western Union, MoneyGram
- Supply Ability:
- 10,000pcs per month
- Place of Origin:
- WENZHOU,CHINA
- Certification:
- API,ISO,CE
Detailed Product Description
| Type: | Ball Valve | Size: | 1/2"~4" (DN15~DN100) |
|---|---|---|---|
| Pressure: | 150LB~2500LB | Ends: | NPT Screwed End,Socket Weld,Butt Weld,Flange |
| Standard: | BS 5351 | Material Body: | C95800 ASTM B148 |
| Trim: | C95800 ASTM B148 | ||
| High Light: | forged type ball valve , stainless steel ball valve | ||
ASTM B148 Ball Valve, Nickel Aluminum Bronze C95800, DN25, 800LB, NPT Thread,Locking device

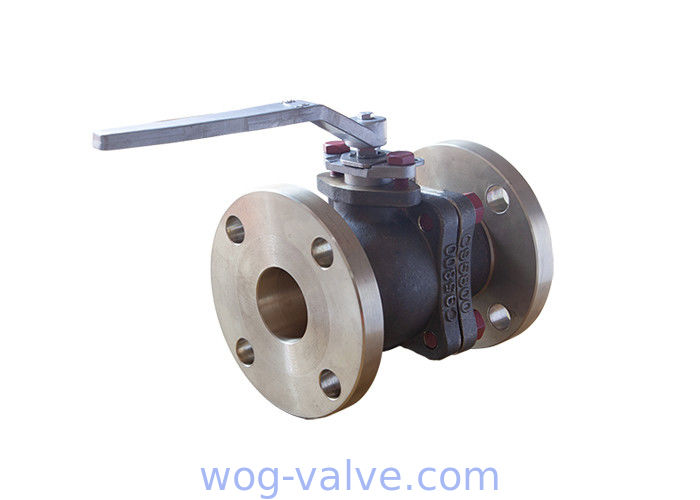

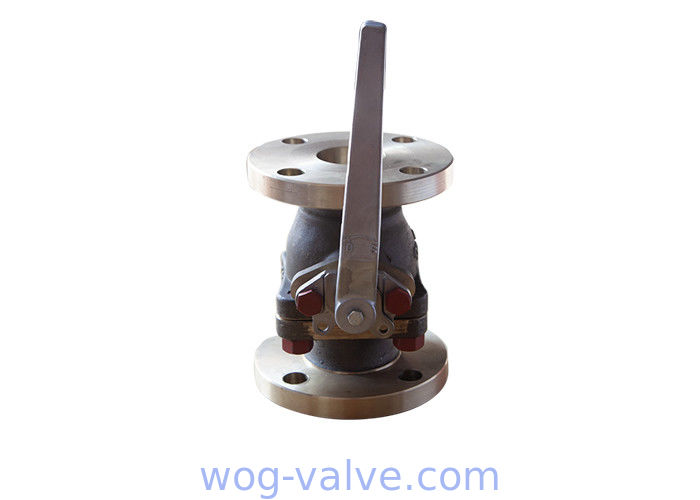

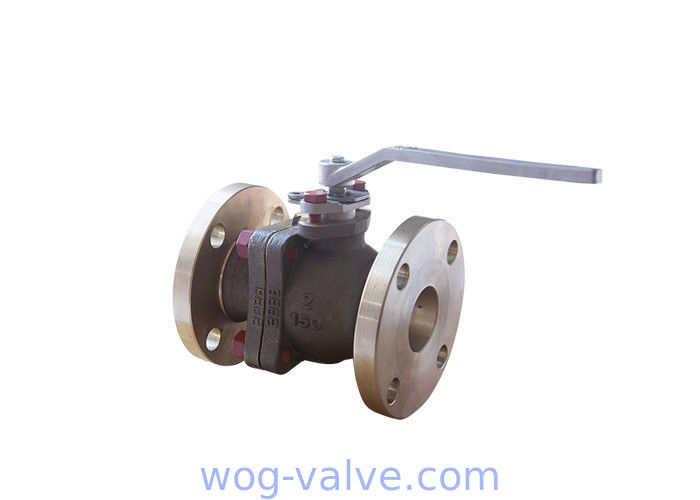

Flanged Ball Valves made from C95800 Nickel Aluminum Bronze for the most demanding environments, especially suitable for seawater applications. Alloy 400 ball & stem w/ Nylon seats provide excellent chemical resistance and mechanical resilience. We offers a full range of floating and trunnion ball valves,Nickel Aluminum Bronze gate valve,Nickel Aluminum Bronze globe valve,Nickel Aluminum Bronze check valve,Nickel Aluminum Bronze Y strainer,etc...from standard applications to extreme temperatures and pressures.
Give us your body material, end connections and trim materials for your desired class & size or we can help you select the right materials based on your process conditions.
|
Shipham Model Number: |
1 |
|---|---|
|
Size Range: |
DN15 - DN300 / 0.5" - 12" |
|
Design Standards: |
BS EN ISO 17292 (BS 5351) |
|
Pressure Ratings: |
Class 150 |
|
End Connections: |
Flanged ANSI B16.5 (Flat or Raised Face) |
|
Face to Face: |
ANSI B16.10 |
|
Description: |
Reduced Bore, Floating Ball, PTFE or Reinforced PTFE Seats & Seals, Open and Close Indicator, Lever Operated, ANti-Static Device |
|
Pressure Testing: |
API 598 / BS EN 12266-1 |
|
Optional Extras: |
Locking Devices, Actuation, Tagging & Marking |
Specfication 1
|
Code |
Body & Bonnet |
Disc |
Stem |
|
|---|---|---|---|---|
| A | Nickel Aluminium Bronze ASTM B148 C95800 | Nickel Aluminium Bronze ASTM B148 C95800 | Nickel Aluminium Bronze ASTM B150 C63200 | |
| B | Nickel Aluminium Bronze ASTM B148 C95800 | Monel® Alloy 400 | Monel® Alloy 400 / Alloy K500 | |
| D | Bronze ASTM B62 | Nickel Aluminium Bronze ASTM B148 C95800 | Nickel Aluminium Bronze ASTM B150 C63200 | |
| E | Bronze ASTM B62 | Monel® Alloy 400 | Monel® Alloy 400 / Alloy K500 | |
| G | Bronze ASTM B61 | Nickel Aluminium Bronze ASTM B148 C95800 | Nickel Aluminium Bronze ASTM B150 C63200 | |
| H | Bronze ASTM B61 | Monel® Alloy 400 | Monel® Alloy 400 / Alloy K500 |
Specfication 2
| CODE | BODY / BONNET | BALL | STEM |
| A | Nickel Aluminium Bronze | Nickel Aluminium Bronze | Nickel Aluminium Bronze |
| B | Nickel Aluminium Bronze | Alloy 400 / Alloy K500 | Alloy 400 / Alloy K500 |
| C | Bronze ASTM B62 | Bronze ASTM B62 | Nickel Aluminium Bronze |
| D | Bronze ASTM B62 | Nickel Aluminium Bronze | Nickel Aluminium Bronze |
| E | Bronze ASTM B62 | Alloy 400 / Alloy K500 | Alloy 400 / Alloy K500 |
| F | Bronze ASTM B61 | Bronze ASTM B61 | Nickel Aluminium Bronze |
| G | Bronze ASTM B61 | Nickel Aluminium Bronze | Nickel Aluminium Bronze |
| H | Bronze ASTM B61 | Alloy 400 / Alloy K500 | Alloy 400 / Alloy K500 |
| J | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze |
| K | Alloy 400 | Alloy 400 / Alloy K500 | Alloy 400 / Alloy K500 |
| L | Titanium | Titanium | Titanium |
| M | Alloy 20 | Alloy 20 | Alloy 20 |
| N | Alloy 625 | Alloy 625 | Alloy 625 |
| P | 6Mo Stainless Steel | 6Mo Stainless Steel | 6Mo Stainless Steel |
| Q | Duplex Stainless Steel | Duplex Stainless Steel | Duplex Stainless Steel |
| R | Nickel Moly Alloy B&C | Nickel Moly Alloy B&C | Nickel Moly Alloy B&C |
| T | Alloy 825 | Alloy 825 | Alloy 825 |
| Z | Zirconium | Zirconium | Zirconium |

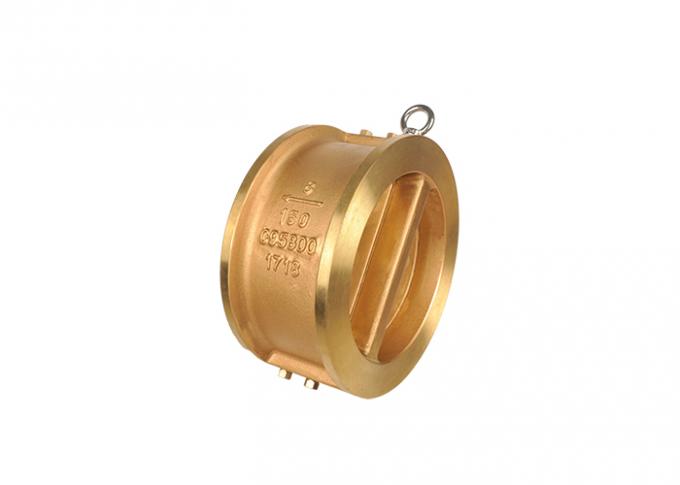

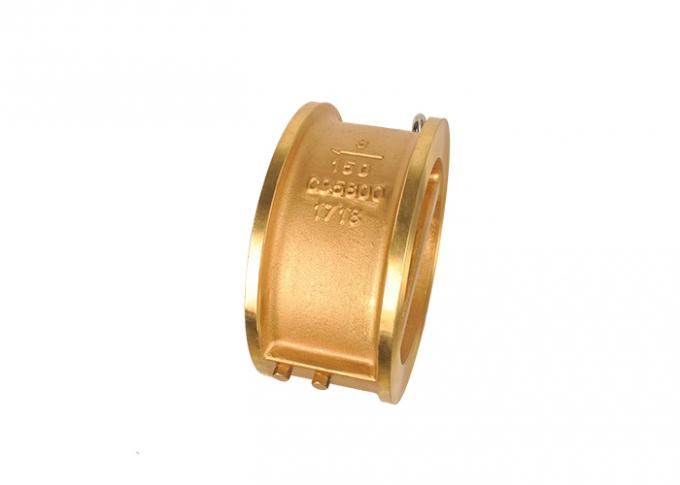

CX FLUID PRODUCTS MFG CO.,LTD. is one of the special Manufacturer for Nickel Aluminium Bronze globe valves/gate valve/check valve/strainers,etc...
And our Nickel Aluminium Bronze valves are used for sea water servies.
