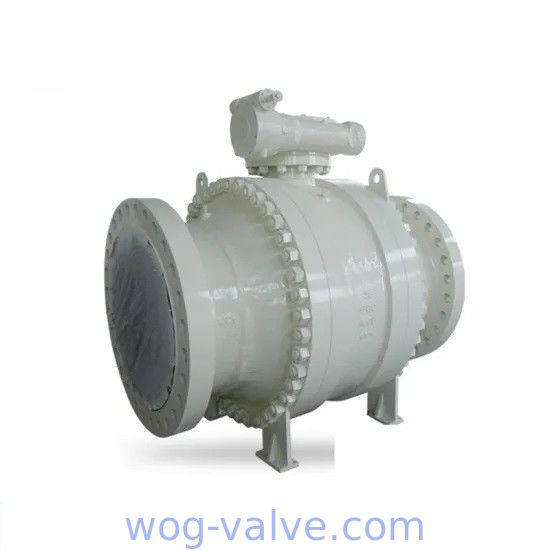

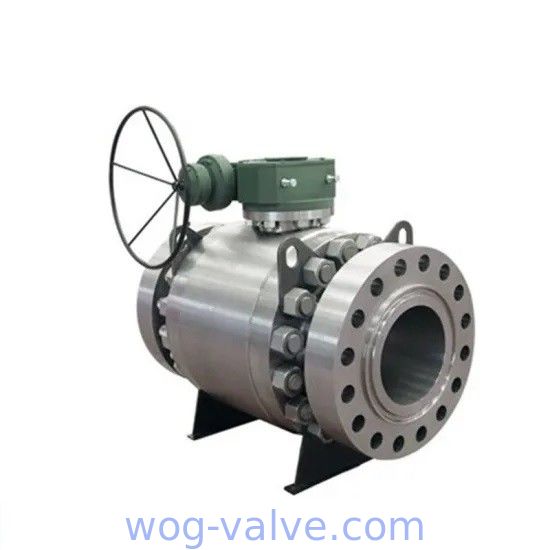

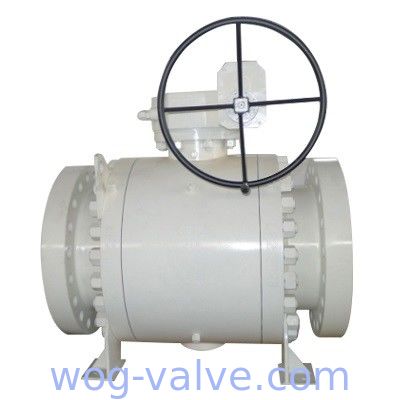

300LB 3 Piece Trunnion Mounted Ball Valve ASTM A105N 24 Inch Ball Valve Nylon Seat
Detailed Product Description
Type:
Ball Valve, Full Bore, Trunnion Mounted Ball
Connection Ends:
Flanged Ends
Class:
150LB To 2,500LB
Size:
1/2"~56"
Body Material:
CF8,CF8M,WCB,CF3
- Model Number:
- CX-3PC-FBV09
- Minimum Order Quantity:
- 1PC
- Prices:
- Negotiable
- Packaging Details:
- Plywood case
- Delivery Time:
- depends on the qty of order
- Payment Terms:
- L/C, D/A, D/P, T/T, Western Union, MoneyGram
- Supply Ability:
- 1000pcs per month
- Place of Origin:
- WENZHOU,CHINA
- Certification:
- CE, 3A, ISO9001, FDA
Detailed Product Description
| Type: | Ball Valve, Full Bore, Trunnion Mounted Ball | Connection Ends: | Flanged Ends |
|---|---|---|---|
| Class: | 150LB To 2,500LB | Size: | 1/2"~56" |
| Body Material: | CF8,CF8M,WCB,CF3,CF3M,1.44408,SCS13,SCS14,etc.. | Ball: | SS304,SS316,F51,F53,etc... |
| Seat: | Nylon | Port: | Ningbo, China |
| Operator: | Gear Operated, Pneuamtic Operated, Electric Operated | Standard: | API 6D |
| High Light: | reducer port ball valve , flanged operated ball valve | ||
3 Piece Full bore Ball Valve, ASTM A105N. A182 F316L, 24 Inch, Class 300LB,Nylon Seat,
1.General Design Features
- Valve Range: Size 2-48Inch (DN50-DN1200), Rating Class 150-2500Lb (PN16-PN420)
- Valve Applications: Oil Industry, Chemical, Power Station, Refinery, Paper Making, Aviation, Other
- Design Standard: API6D, ASME B16.34, MSS-SP-72, API 608, ISO17292, DIN, Other
- Face-to-Face Standard: ASME B16.10, API6D, Other
- Connection Standard: Flange per ASME B16.5/ASME B16.47(NPS≥26”), BW per ASME B16.25, Other
- Testing Standard: API 598, API6D, Other
- Fire-Safe Design: API 607/6FA
- Type of Bore: Full Bore, Reduced Bore, Other
- Valve Material: Cast Steel, Forged Steel
- Valve Operation: Lever, Gear Worm, Electric, Pneumatic, Other
- Connection Type: FF, RF, RTJ, BW
- Ball Type: Trunnion Mounted Ball
- Construction Type: Split Body(2-pcs,3-pcs), Cryogenic
- Stem Type: Extended
- Seat Type: Soft Sealing, Metal-to-Metal Sealing
- Body-Bonnet Connection Type: Bolted Bonnet, Extended Bonnet
- Other Features:Fire Safe,Anti-Static,Anti-Blowout,Double Block and Bleed,NACE,Locking Device,Lugs and Support,Other
2.Main Material Applied for Trunnion Mounted Ball Valve
| MAIN MATERIAL LIST | |
| Body/Bonnet: | Casting Conduit: A216-WCB/WCC,A352-LCB/LCC,A351-CF8/CF8M/CF3/CF3M/CF8C/CN7M,A890 4A/5A/6A,Other Forging Conduit: A105,A694-F52,A182-LF2,A182-F304/F304L/F316/F316L/F321,ALLOY-20,F51/F53/F55,Other |
| Ball | A105+ENP,F52+ENP,F6a,LF2+ENP,SS304,SS304L,SS316,SS316L,SS321,ALLOY-20,F51,F53,F55,Other |
| Stem | 1045+ENP,F6a,SS4140+ENP,SS304,SS304L,SS316,SS316L,SS321,ALLOY-20,SS17-4PH,F51,F53,F55,Other |
| Seat Ring (For Metal Seal Type) |
A105+ENP,LF2+ENP,F6a,SS304,SS304L,SS316,SS316L,SS321,ALLOY-20,F51,F53,F55,Other |
| Seat Insert | PTFE, RPTFE, NYLON, MOLON, DEVLON, PEEK, PCTFE, Other |
| Gasket | SS304+Graphite, SS316+Graphite,SS316L+Graphite,Other |
| Packing | Flexible Graphite, PTFE, Other |
| Bolts/Nuts | A193 Gr.B7(M)/A194 Gr.2H(M), A320 Gr.L7(M)/ A194 Gr.7(M) or Gr.4(M),A193 Gr.B8/ A194 Gr.8, A193 Gr.B8M/A194 Gr.8M,A453 Gr.660,Other |
| Seal | Viton, NBR, Graphite |
| Note |
*ENP Means Electroless Nickel Plating. For More Detailed of our valves,pls contact with us freely. |
