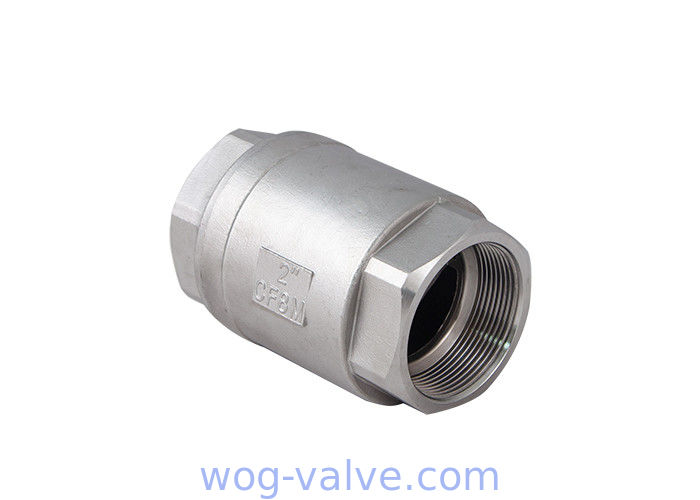

2PC Vertical threaded Check valve DN25 DN100 BSPT Screwed 1000 Psi
- Model Number:
- CX-2PCSCK-005
- Minimum Order Quantity:
- 1PC
- Prices:
- Negotiable
- Packaging Details:
- Carton and plywood case
- Delivery Time:
- 30~45 work days
- Payment Terms:
- L/C,T/T,
- Supply Ability:
- 2,000pcs per week
- Place of Origin:
- WENZHOU,CHINA
- Certification:
- API,ISO,CE
Detailed Product Description
| Material: | A216WCB,304/CF8,316/CF8M | Media: | Water,Oil&Gas |
|---|---|---|---|
| Pressure: | 1000WOG | Structure: | 3 PIECE BODY CHECK |
| Temperature Of Media: | -20~220ºC | ||
| High Light: | y check valve , threaded check valve | ||
2PC Body industrial Vertical threaded Check valve,CF8,CF8M material,DN25,DN100,BSPT Screwed,1000WOG
Product Description :
1) 2PC Body type
2) Size: 1/2''-4''(DN15-DN100)
3) Material: CF8(SS304), CF8M(SS316), DIN1.4408/1.4308
4) Threaded: BSP, NPT, PT, DIN259/2999
5) Working Pressure: 1000PSI
6) Suitable Temp.: -20~200ºC~350ºC
7) Suitable Medium: Water, Natural Gas, Oil and some corrosive liquid
Features:
1. Investment casting Body
2. Screwed bonnet, replaceable seat
3. Low pressure drop
4. Working pressure 1000 psi for W.O.G.
5. Temperature range: -60 to 450 °F
6. 100% leakage tested at 100 psi air under water
7. Hydrostatic test pressure: 1500psi
| Product Name | 2pc body Check Valve with stainless steel 1000 PSI |
| 1. Material | Stainless Steel 304/316/304L/316L ( CF8/CF8M/CF3/CF3M) |
| 2. Size | 1/2''~4'' ( DN15~DN100) |
| 3.Certificate | ISO9001 & CE |
| 4. Port | Full Port |
| 5. Working Pressure | 1000WOG |
| 6. Connection Ends | NPT/BSP/BSPT/DIN259/DIN2999 |
| 7. Working Temp. | -20~220ºC |
| 8. Suitable Medium | Water, Natural Gas, Oil and some corrosive liquid |
| 9. Seal | Metal,PTFE |
| 10. Locking | Option |
| 11. Inspection & Testing | According to API598 |
| Shipment | |
| Delivery Time | 15~20 Days |
| Package | Standard Exporting Plywood Case |
| Shipping Port | Ningbo/Shanghai, China |
| Shipping Terms | EXW, FOB, CFR, CIF, etc. |
| Payment Terms | T/T, Western Union, PayPal, etc. |
| 30% prepayment, 70% balance paid before shippment | |
| Warranty | 18 Months after leaving factory |
| Advantage | OEM/ODM is applicable |
| Others | We also manufacture Flange Ball Valve, Gate Valve, Globe Valve, Check Valve, Butterfly Valve & Y Strainer |
We also spercial produce of Flange Ball Valve, Gate Valve, Globe Valve, Check Valve, Butterfly Valve & Y Strainer.Any inquiry for these valves,pls let us know freely by sales@cncxvalve.com
We will give you best price immediately,and meanwhile,we will supply better service with your other suppliers.Why not have a try.
