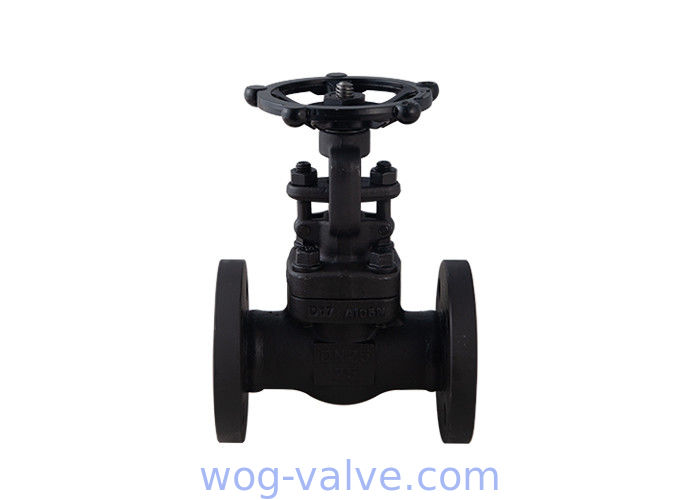

API 602 forged Integral flanged globe Valve,Reduced Bore,a105n,1inch,dn25,class 300
Detailed Product Description
Type:
Forged Integral Flange Globe Valve
Size:
1/2"~2" (DN15~DN50)
Class:
800 LB~2500LB
End:
SW,BW,Flange
Materials:
ASTM A105N,F304, F316, F316L, F304
- Model Number:
- CX-GLBV-12
- Minimum Order Quantity:
- 1PC
- Prices:
- Negotiable
- Packaging Details:
- Plywood Case
- Delivery Time:
- 7-30 work days
- Payment Terms:
- L/C, D/A, D/P, T/T, Western Union, MoneyGram
- Supply Ability:
- 10,000pcs per month
- Place of Origin:
- WENZHOU,CHINA
- Certification:
- API,ISO,CE
Detailed Product Description
| Type: | Forged Integral Flange Globe Valve | Size: | 1/2"~2" (DN15~DN50) |
|---|---|---|---|
| Class: | 800 LB~2500LB | End: | SW,BW,Flange |
| Materials: | ASTM A105N,F304, F316, F316L, F304L, F51,Aluminum Bronze B148 C95800,B62,B150,,etc... | Standard: | API 602 |
| Bore: | Reduced Bore | Port: | Ningbo, China |
API 602 forged Integral flanged globe Valve,Reduced Bore,a105n,1inch,dn25,class 300
1.General Design Features
- Valve Range: Size 1/2-2Inch (DN15-DN50), Rating Class 150-2500Lb (PN16-PN420)
- Valve Applications: Petrochemical Industries, Pharmaceutical Plants, Oil Industries, Petroleum Refinery, Power Plant, Thermal& Gas, Fertilizer& Agro Chemicals, Steel Plant, Paper Industries, Cement Industries,etc...
- Design Standard: API 602, BS5352, ASME B16.34, DIN,etc...
- Face-to-Face Standard: ASME B16.10, Manufacturer’s STD,etc...
- Connection Standard: Flange per ASME B16.5, BW per ASME B16.25, SW per ASME B16.11, NPT per ASME B1.20.1,etc...
- Testing Standard: API 598
- Type of Bore: Full Bore, Reduced Bore,etc...
- Valve Material: Forged Steel
- Valve Operation: Handwheel, Electric, Pneumatic,etc...
- Connection Type: FF, RF, RTJ, BW, SW, NPT,
- Disc Type: Plug Type, Ball Type, Parabolic Type,etc...
- Construction Type: Straight Type, Y-type, Bellow Sealed Type,etc...
- Stem Type: Rising Stem
- Seat Type: Metal-to-Metal Sealing, Integral Seat
- Body-Bonnet Connection Type: Bolted Bonnet, Welded Bonnet, Threaded Bonnet, Pressure Sealed Bonnet, Extended Bonnet
- Other Features: Hard Facing, Bypass Arrangement, Drain and Vent Connection, Bellow Sealed, Live Loading Stem Packing,
- With Lantern Ring, Water Seal, Locking Device, Extended Stem,etc...
2.Main Material Applied for Forged Steel Globe Valve
| MAIN MATERIAL LIST | |
| Body/Bonnet: | A105,A182-LF2,A182-F11/F22/F5/F9,A182-F304/F304L/F316/F316L/F321,ALLOY-20,F51/F53/F55,Other |
| Disc | A182-F6a,SS304,SS304L,SS316,SS316L,SS321,ALLOY-20,F51,F53,F55,Other |
| Stem | F6a,SS304,SS304L,SS316,SS316L,SS321,ALLOY-20,SS17-4PH,F51,F53,F55,Other |
| Seal Surface | 13CR/13CR,13CR/STL,STL/STL,SS304/SS304,SS316/SS316,SS316/STL,ALLOY-20/ALLOY-20,F51/F51,Other |
| Gasket | SS304+Graphite, SS316+Graphite,SS316L+Graphite,1008,SS304L,SS316L, Other |
| Packing | Flexible Graphite, Other |
| Bolts/Nuts | A193 Gr.B7(M)/A194 Gr.2H(M), A320 Gr.L7(M)/ A194 Gr.7(M) or Gr.4(M), A193 Gr.B16/ A194 Gr.7,A193 Gr.B8/ A194 Gr.8, A193 Gr.B8M/A194 Gr.8M,A453 Gr.660,etc |
| Note | *For More information of our valves,pls kindly let us know freely via email:sales@cncxvalve.com |
Mail part & material
| NO. | Part Name | CS to ASTM | AS to ASTM | SS to ASTM | |
| Type A105 | Type F22 | Type F304(L) | Type F316(L) | ||
| 1 | Body | A105 | A182 F22 | A182 F304(L) | A182 F316(L) |
| 2 | Disc | A276 420 | A276 304 | A276 304(L) | A276 316(L) |
| 3 | Stem | A182 F6 | A182 F304 | A182 F304(L) | A182 F316(L) |
| 4 | Gasket | Corrugated SS+ graphite | SS+PTFE | ||
| 5 | Bonnet Bolt | A105 | A276 304 | A276 F304()L | A276 F316(L) |
| 6 | Bonnet Bot | A193 B7 | A193 B16 | A193 B8 | A193 B8M |
| 7 | Pin | A276 420 | A276 304 | ||
| 8 | Gland | A276 410 | A182 F304(L) | A182 F316(L) | |
| 9 | Gland Eyebolt | A193 B7 | A193 B16 | A193 B8 | A193 B8M |
| 10 | Gland Flange | A216 WCB | A351 CF8 | ||
| 11 | Gland Nut | A194 2H | A194 4 | A194 8 | A194 8M |
| 12 | Yoke Nut | A276 410 | |||
| 13 | H.W.Lock Nut | A194 2H | A194 4 | A194 8 | A194 8M |
| 14 | Nameplate | SS | |||
| 15 | Handwheel | A197 | |||
| 16 | Stem Packing | Flexible | PTFE | ||
| Suitable Medium | Water, oil, gas etc., | Water, oil, gas etc., | HNO3,CH3OOH etc | ||
| Suitable Temperature | -29℃～425℃ | -29℃～550℃ | -29℃～180℃ | ||
We also spercial produce of Forged steel Flange Ball Valve,Forged steel Gate Valve, Forged steel Globe Valve, Forged steel Check Valve, &Forged steel Y Strainer.Any inquiry for these valves,pls let us know freely by sales@cncxvalve.com
We will give you best price immediately,and meanwhile,we will supply better service with your other suppliers.Why not have a try.
