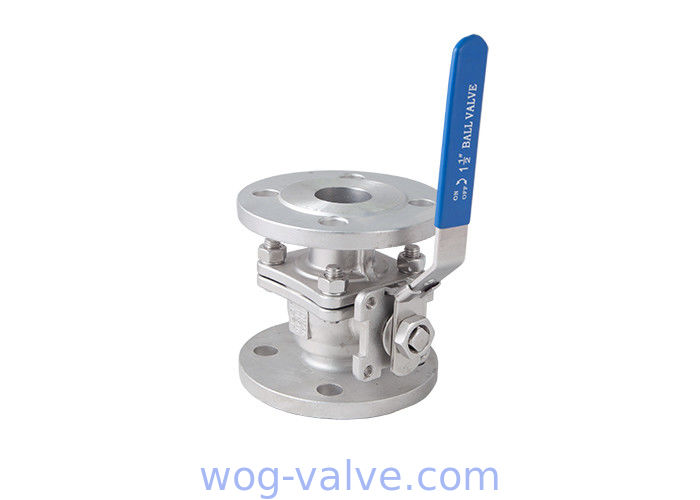

A351CF8M Flanged Ball Valve 1/2~ 8 Inch Ball Valve 150LB 300LB
Detailed Product Description
Valve Material:
WCB/1.0619,304/CF8,316/CF8M/1.4408,etc...
Body Material:
CF8,CF8M,WCB,CF3,CF3M,1.44408,SCS13,SCS14,etc..
Pressure:
PN16/PN25/PN40,150LB,300LB
- Model Number:
- CX-2PC-DIN112
- Minimum Order Quantity:
- 1PC
- Prices:
- Negotiable
- Packaging Details:
- Carton and plywood case
- Delivery Time:
- depends on the qty of order
- Payment Terms:
- L/C, D/A, D/P, T/T, Western Union, MoneyGram
- Supply Ability:
- 1,000pcs per month
- Place of Origin:
- WENZHOU,CHINA
- Certification:
- API,ISO,CE
Detailed Product Description
| Valve Material: | WCB/1.0619,304/CF8,316/CF8M/1.4408,etc... | Body Material: | CF8,CF8M,WCB,CF3,CF3M,1.44408,SCS13,SCS14,etc.. |
|---|---|---|---|
| Pressure: | PN16/PN25/PN40,150LB,300LB | Size: | 1/2"~8" (DN15~DN200) |
| Medium: | Water Oil Gas | Standard: | ANSI/JIS/DIN |
| High Light: | wafer type ball valve , full bore ball valve | ||
Product Description
150LB,300LB,A351CF8M Flanged Floating Ball Valve,ISO5211 High mounting pad
- CX Valve is a industry valves manufacturer, including Thread & Flange Ball Valves, Gate Valves, Globe Valves, Check Valves, Y Strainers in stainless steel, carbon steel, cast steel, forged steel and alloy steel.
- Flanged Ball Valve includes 1PC Stainless Steel Flange Ball Valve, 1PC Carbon Steel Flanged Ball Valve, 1PC API/DIN Flanged Ball Valve, 2PC API Flanged Stainless Steel Ball Valve, Two Piece DIN F4/F5 Flanged Ball Valve, 2 Piece JIS 10K Full Port Flanged Ball Valve, 2PC Floating Flanged Ball Valve with ISO5211 Direct Mounting Pad, 2PC CF8M/WCB Flanged Ball Valve, 3PC API/DIN standard Flanged Ball Valve, 3PC Stainless Steel Floating Flanged Ball Valve, Three Piece CF8M 150LB Flanged Ball Valve, 3 Piece Full Port PN16/40 Flanged Ball Valve.
- CX Valve Floating Ball Valve With the rapid development of science and technology, production technology and continuous improvement of product structure, quickly developed into one of the main valve.the ball is widely used in long-distance pipeline, oil refining, power, paper, chemical, pharmaceutical, steel, municipal, water and other industries, the oil pipeline in the area plays an important role. The main characteristics of valve seal itself reliable, compact, easy maintenance, simple structure, with the spherical sealing surface often in closed state, the media can not easily be eroded, easy operation and maintenance for natural gas, solvents, water, acid and other general working medium.
- CX VALVE is one of the professional Ball Valve Manufacturer in china. We supplies: floating ball valve,trunnion ball valve,metal seated ball valve,threaded end ball valve,butt welded ball valve,Forged steel ball valve etc, We can manufacture and supply ball valve according to your requirements Main material of the products are A105N, WCB, C5,WC6, WC9,CF8, CF8M, 316 and so on. Tops Valve design by the standards of API6D, ASME, ANSI, JIS, DIN, BS, etc.
Specification:
| Product Name |
150LB,300LB,A351CF8M Flanged Floating Ball Valve,ISO5211 High mounting pad |
| 1. Material | SS304/316/304L/316L ( CF8/CF8M/CF3/CF3M), WCB, etc. |
| 2. Size | 1/2~8 inch ( DN15~DN200) |
| 3. Thread standard | ISO9001 & CE |
| 4. Port | Full Port,Reducer Port |
| 5. Working Pressure | 150LB~1500LB,PN16~PN100,JIS10K,JIS20K |
| 6. Connection Ends | Flange,BW,SW,Thread |
| 7. Working Temp. | -20~200ºC, or according to customer requirements for different industry. |
| 8. Suitable Medium | Water, Natural Gas, Oil and some corrosive liquid |
| 9. Operated | Handle operated, Locking device is option |
| 10. Inspection & Testing | According to API598 |
| Shipment | |
| Delivery Time | Normally 30~45 Days |
| Package | Standard Exporting Plywood Case |
| Shipping Port | Ningbo/Shanghai, China |
| Shipping Terms | Exw, FOB, CFR, CIF, etc. |
| Payment Terms | T/T, Western Union, PayPal, etc. |
| 30% prepayment, 70% balance paid before shipping. | |
| Country of Origin | Wenzhou city, China |
| Production Capacity | 1000 sets/month |
| MOQ | 10 PCS/size |
Technical Specification:
- Design & Manufacture standard: API 6D, API 608, BS 5351.
- Pressure & Temperature standard: ASME B16.34.
- Face to face dimension standard: ASME B16.10.
- Flange standard: ASME B16.5, ASME B16.47.
- Test & Inspect standard: API 598, API 6D.
Product Feature:
- Floating ball, full bore or reduce bore.
- ISO5211 mounting pad for option.
- Blow-out proof stem design.
- PTFE/RPTFE seat seal( Seat seal material could be decided by customer's request or according to valve's medium & temp. condition).
- Fire-proof and anti-static design if need.
- Operation: Hand wheel, Worm wheel, Pneumatic actuator & Electric Actuator.
