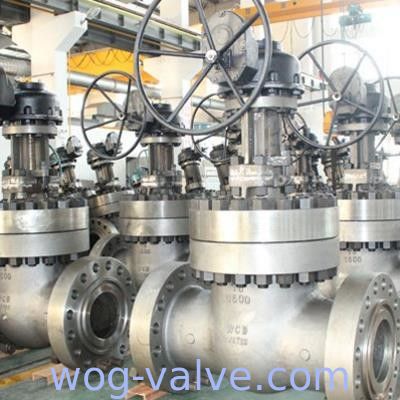

ASTM A216 Rising Stem Cast Steel Gate Valve Full Port Flex Wedge Gate Valve14 Inch Worm Gear
Detailed Product Description
Type:
Gate Valve
Material:
ASTM A216 WCB
Size:
14inch(DN350)
Class:
ANSI 150LB
Surface:
Epoxy Coating
Port:
Ningbo, China
High Light:
bolted bo
- Model Number:
- CX-GTV-11
- Minimum Order Quantity:
- 1PC
- Prices:
- Negotiable
- Packaging Details:
- Plywood packing or fumigation packing
- Delivery Time:
- 30-60days
- Payment Terms:
- L/C, D/A, D/P, T/T, Western Union, MoneyGram
- Supply Ability:
- 1000 PCS per month
- Place of Origin:
- WENZHOU,CHINA
- Certification:
- API,ISO,CE
Detailed Product Description
| Type: | Gate Valve | Material: | ASTM A216 WCB |
|---|---|---|---|
| Size: | 14inch(DN350) | Class: | ANSI 150LB |
| Surface: | Epoxy Coating | Port: | Ningbo, China |
| High Light: | bolted bonnet gate valve , butt weld gate valve | ||
ASTM A216 WCB,BB,OS&Y,Rising Stem,Full Port,flex wedge gate valve,14inch,150LB,Worm Gear
1.General Design Features
- Valve Range: Size 2-48Inch (DN50-DN1200), Rating Class 150-1500Lb (PN16-PN250)
- Valve Applications: Oil Industry, Chemical, Power Station, Refinery, Pharmaceutical Plants, Fertilizers, Steel Plant, Paper Industires,etc...
- Design Standard: API600, ASME B16.34, BS1414, DIN3352,etc..
- Face-to-Face Standard: ASME B16.10, etc...
- Connection Standard: Flange per ASME B16.5/ASME B16.47(NPS≥26”), BW per ASME B16.25 Other
- Testing Standard: API 598, etc...
- Type of Bore: Full Bore, etc...
- Valve Material: Cast Steel
- Valve Operation: Handwheel, Gear Worm, Electric, Pneumatic, etc..
- Connection Type: FF, RF, RTJ, BW
- Gate Type: Flexible Wedge, Parallel Disc Wedge, etc..
- Stem Type: Rising Stem
- Seat Type: Welded Seat, Threaded Seat, Integral Seat, etc..
- Body-Bonnet Connection Type: Bolted Bonnet, Extended Bonnet, etc..
- Other Features:Hard Facing,Bypass Arrangement,Drain and Vent Connection,Bellow Sealed,Live
- Loading Stem Packing,With Lantern Ring,Water Seal,Locking Device,Extended Stem,etc..
2.Main Material Applied for Wedge Gate Valve
| MAIN MATERIAL LIST | |
| Body/Bonnet: | A216-WCB/WCC,A352-LCB/LCC,A217-WC6/WC9/C5/C12,A351-CF8/CF8M/CF3/CF3M/CF8C/CN7M,A890 4A/5A/6A,Other |
| Wedge | A216-WCB/WCC,A352-LCB/LCC,A217-WC6/WC9/C5/C12,A351-CF8/CF8M/CF3/CF3M/CF8C/CN7M,A890 4A/5A/6A,A217-CA15,Other |
| Stem | F6a,SS304,SS304L,SS316,SS316L,SS321,ALLOY-20,SS17-4PH,F51,F53,F55,Other |
| Seat Ring | A105,LF2,F11,F22,F5,F9,F6a,SS304,SS304L,SS316,SS316L,SS321,ALLOY-20,F51,F53,F55,Other |
| Seal Surface | 13CR/13CR,13CR/STL,STL/STL,SS304/SS304,SS316/SS316,SS316/STL,ALLOY-20/ALLOY-20,F51/F51,Other |
| Gasket | SS304+Graphite, SS316+Graphite,SS316L+Graphite,1008,SS304L,SS316L,Other |
| Packing | Flexible Graphite, Other |
| Bolts/Nuts | A193 Gr.B7 (M)/A194 Gr.2H (M), A320 Gr.L7 (M)/ A194 Gr.7 (M) or Gr.4 (M), A193 Gr.B16/ A194 Gr.7, A193 Gr.B8/ A194 Gr.8, A193 Gr.B8M/A194 Gr.8M,A453 Gr.660,Other |
| Note |
*We also manufacture Flange Ball Valve, Gate Valve, Globe Valve, Check Valve, Butterfly Valve & Y Strainer *For More information for our products,pls kindly contact with us freely. |
We also spercial produce of Flange Ball Valve, Gate Valve, Globe Valve, Check Valve, Butterfly Valve & Y Strainer.Any inquiry for these valves,pls let us know freely by sales@cncxvalve.com
We will give you best price immediately,and meanwhile,we will supply better service with your other suppliers.Why not have a try.
